OBSTRUCTION LIGHTING
航空障碍灯

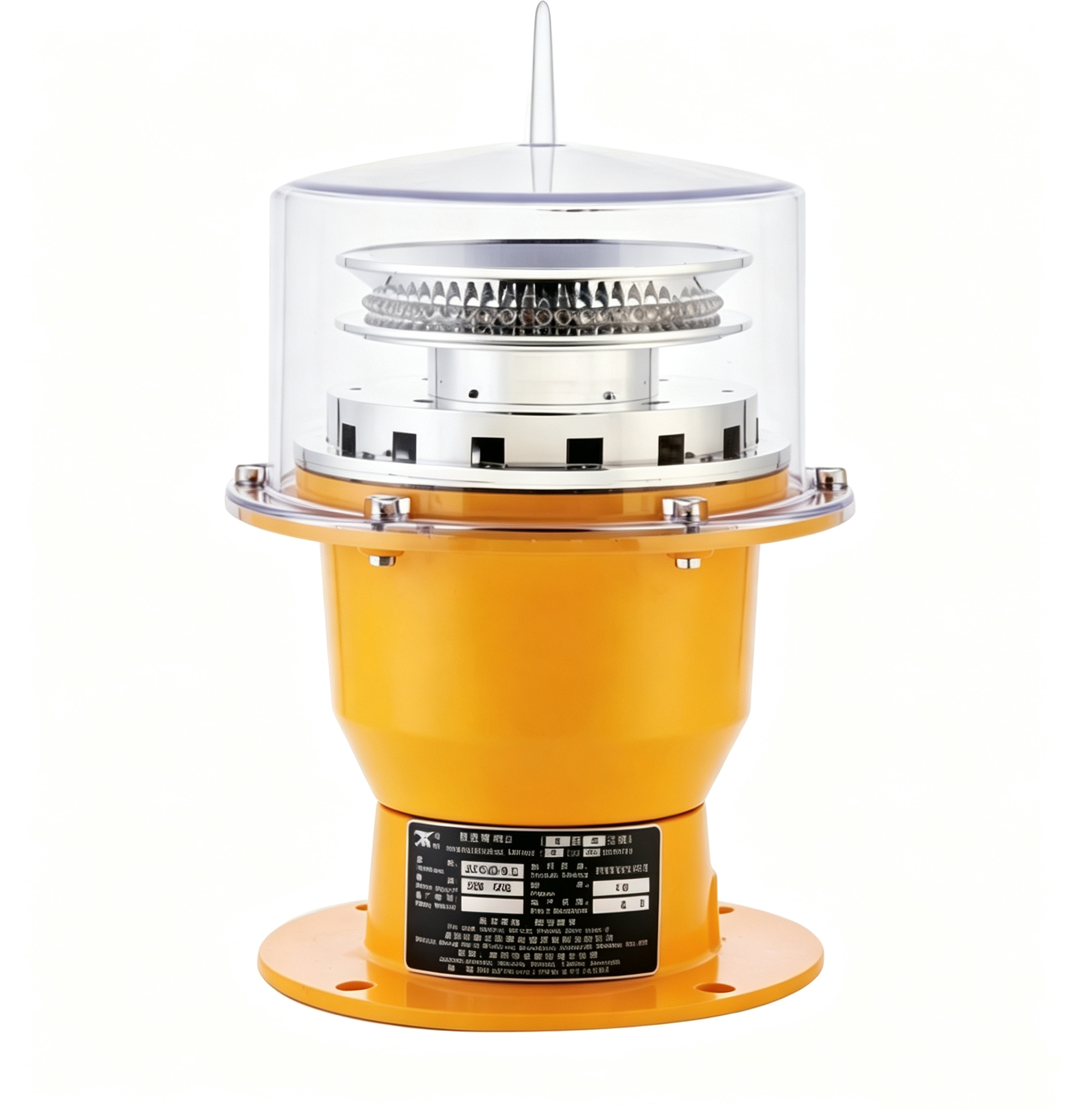

Low Intensity Obstruction Light — Type B
The Type B low-intensity obstruction light is a steady-burning red light designed for marking fixed objects with a height of less than 45 meters. It meets the technical requirements of ICAO Annex 14, FAA AC 70/7460-1L, and CAAC MH/T6012 standards. The lamp body is made of high-quality aluminum die-casting with Bayer PC lens, offering light weight, high strength, and excellent UV resistance.
Specifications
Light Characteristics
- Light Source
- LED
- Available Colors
- Red
- Peak Intensity
- 32 cd
- Flashing Frequency
- Steady burning
- LED Life Expectancy
- >120,000 hours
Physical Characteristics
- Temperature Range
- -40 to 60°C
- Average Power
- ≤ 4W
- Voltage
- AC220 (Options)
- Body Material
- Corrosion resistant anodised aluminium
- Lens Material
- Bayer PC, UV-resistant
Compliance

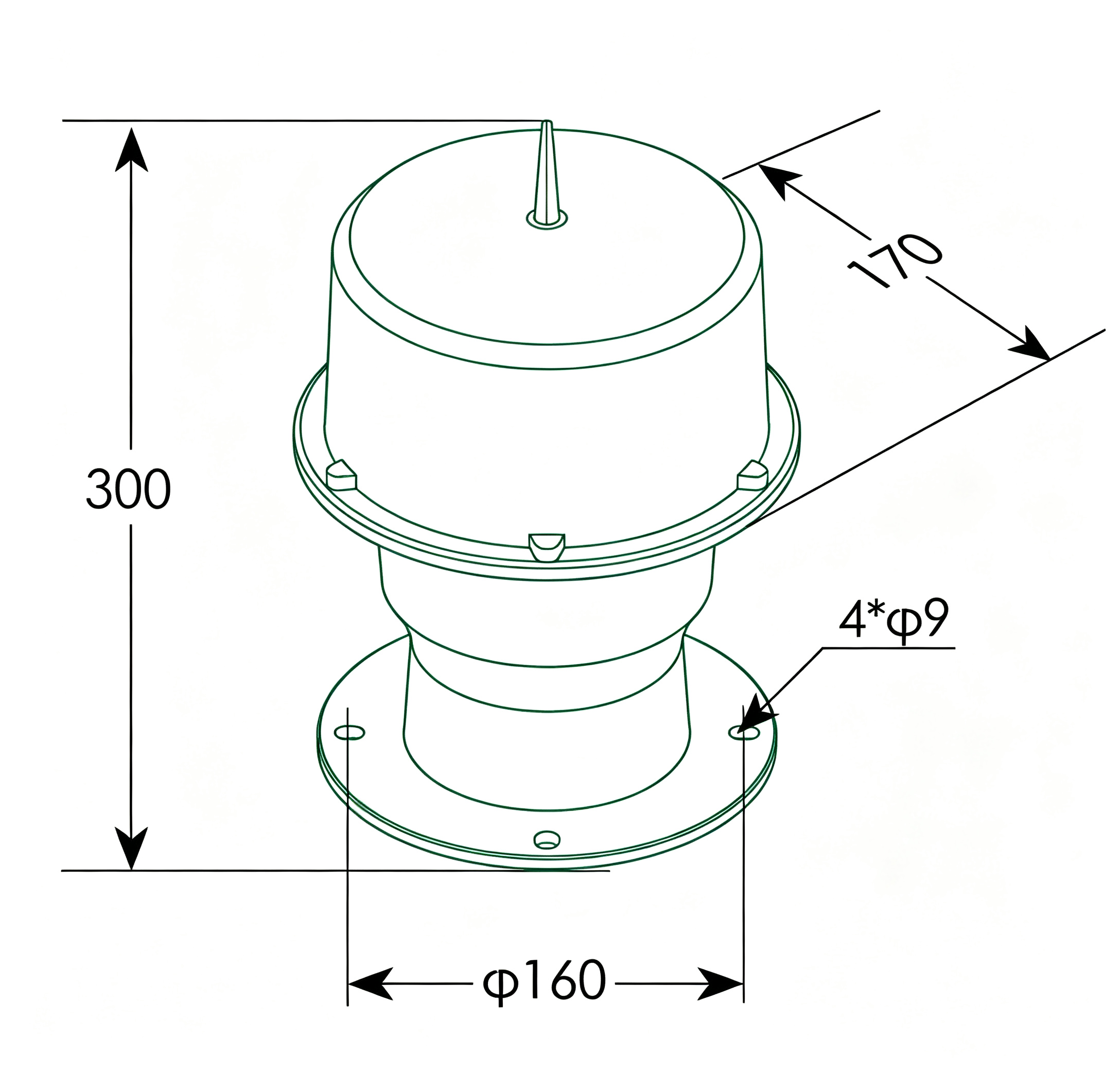

- Height
- 300 mm
- Mass
- 2.0 kg
- Ingress Protection
- IP66
- Service Life
- Up to 12 Years
- Compliance
- ICAO Annex 14, Vol 2
