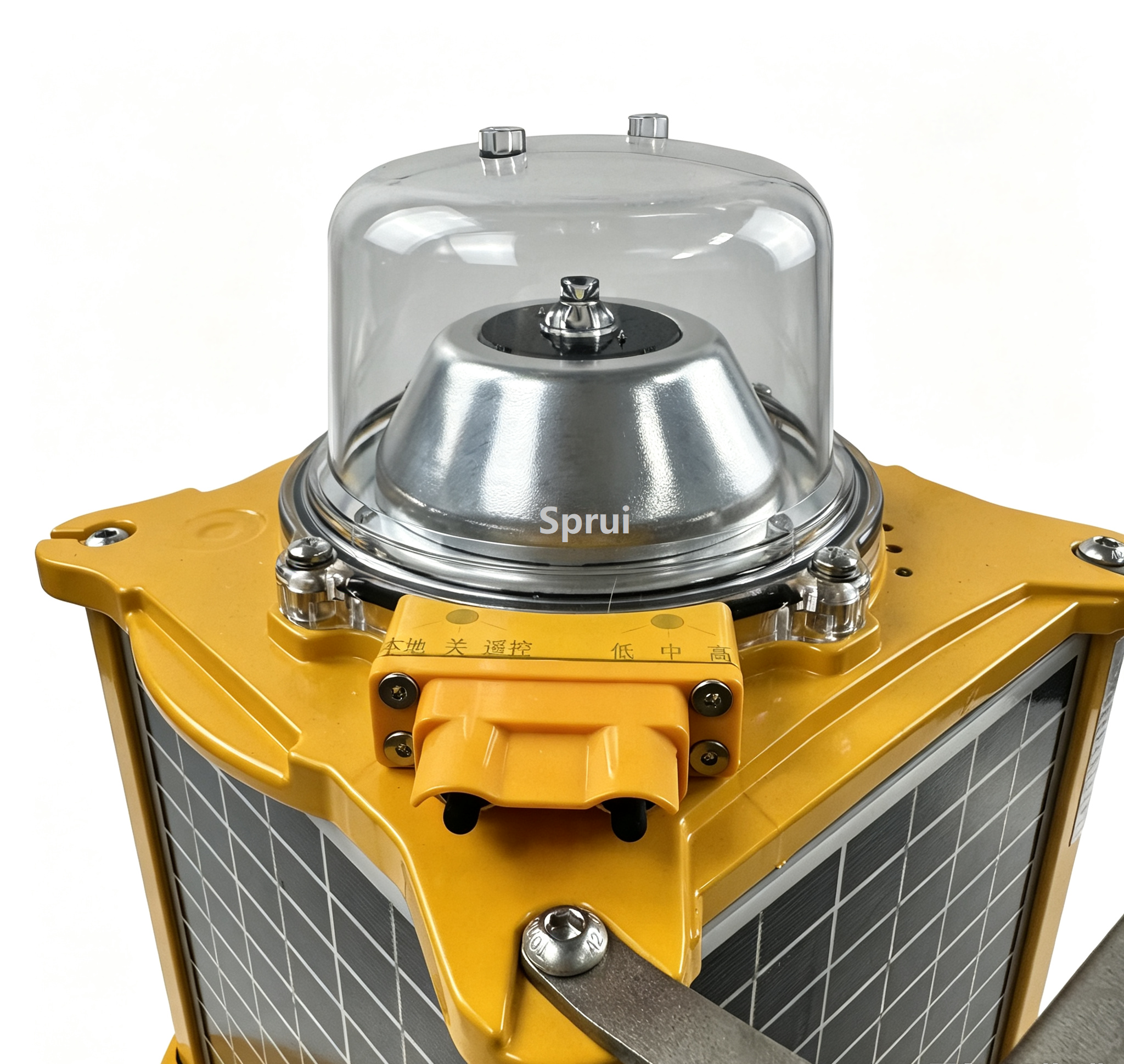

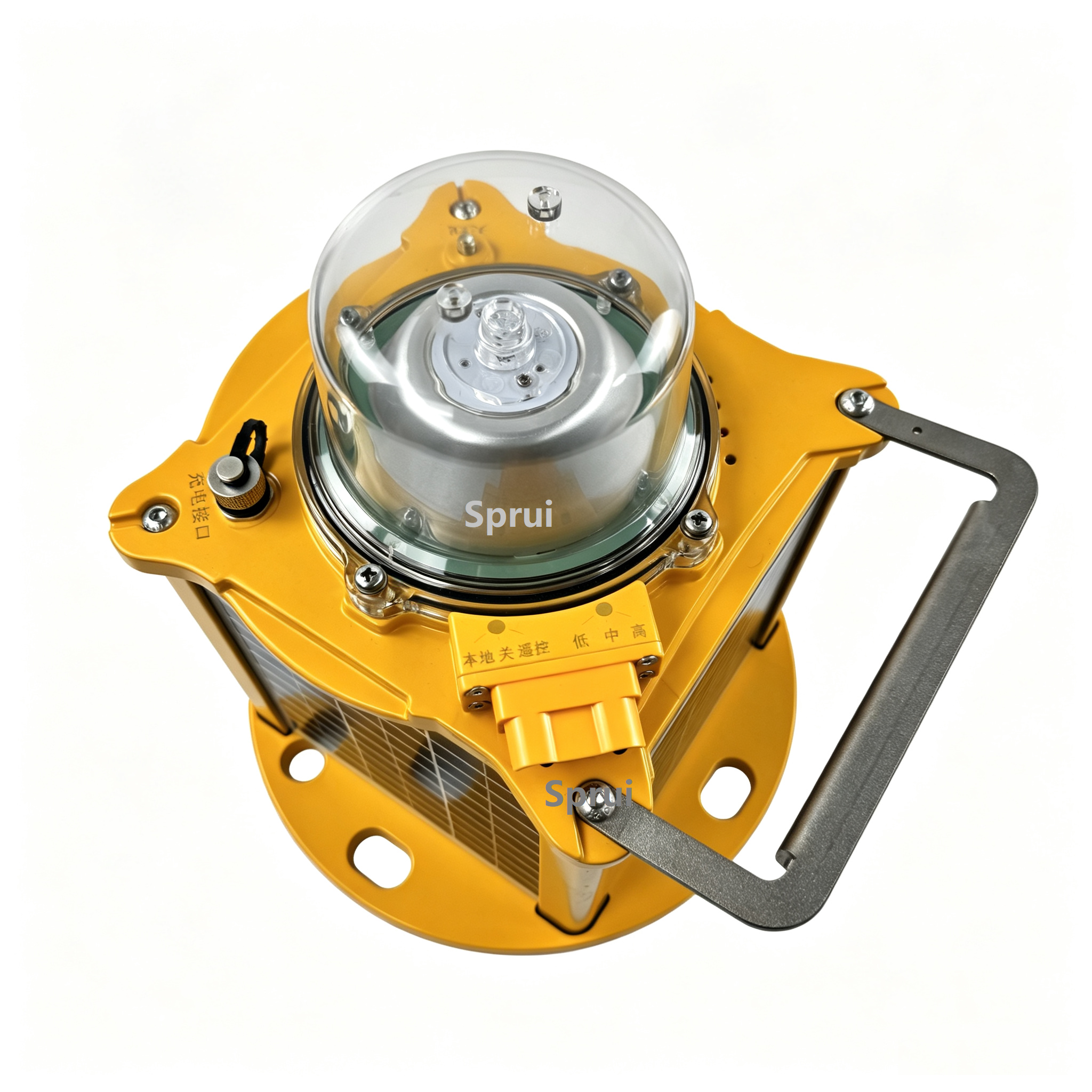

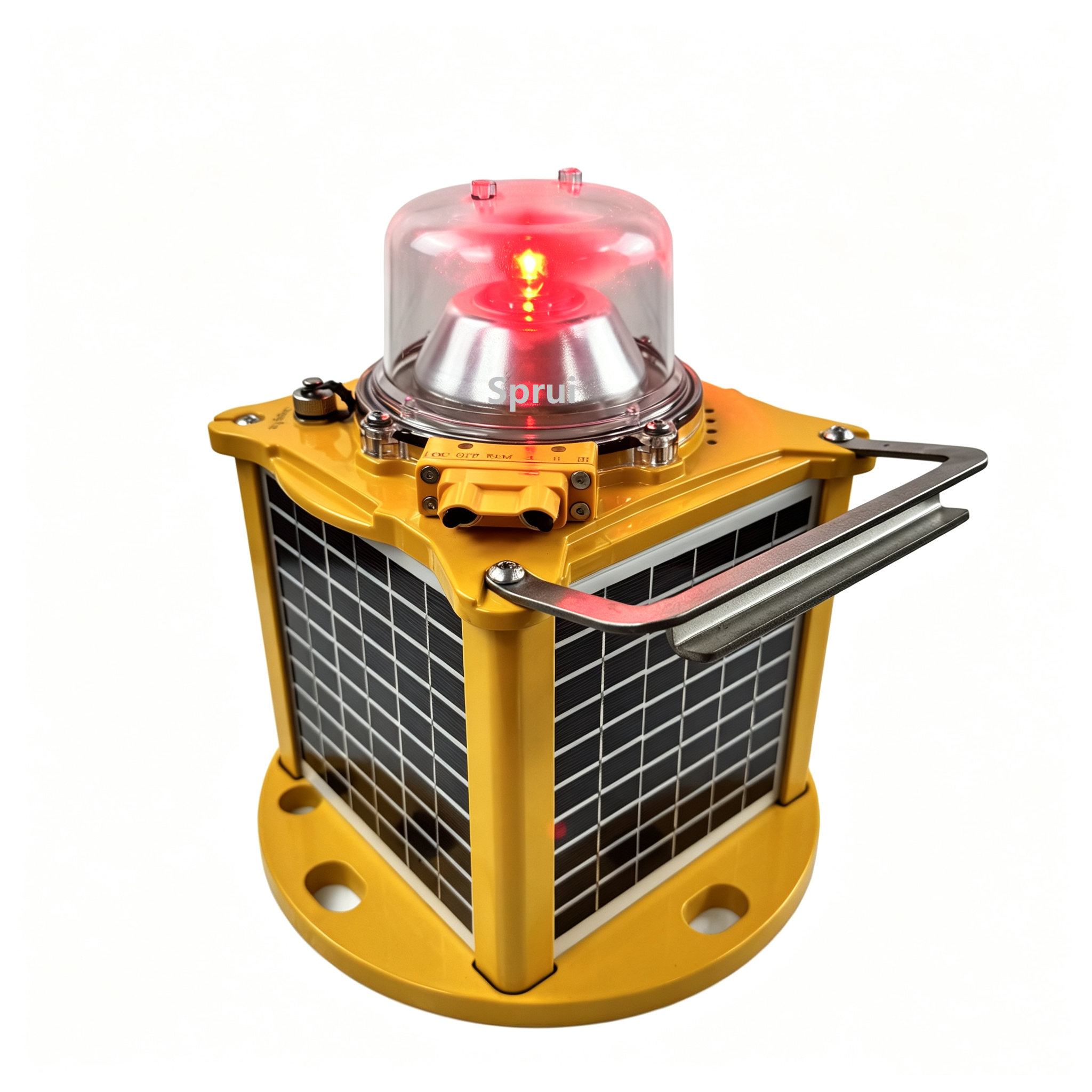

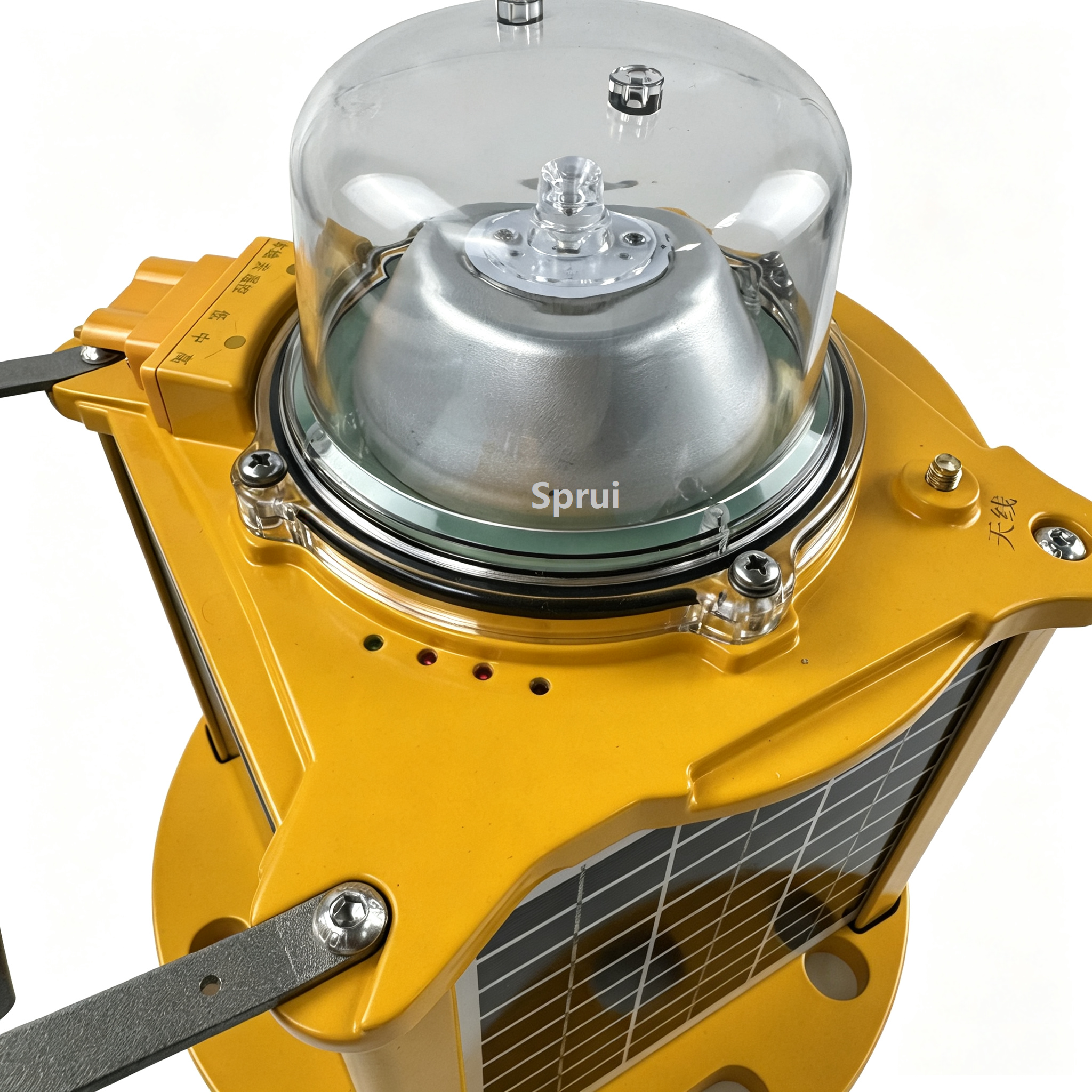

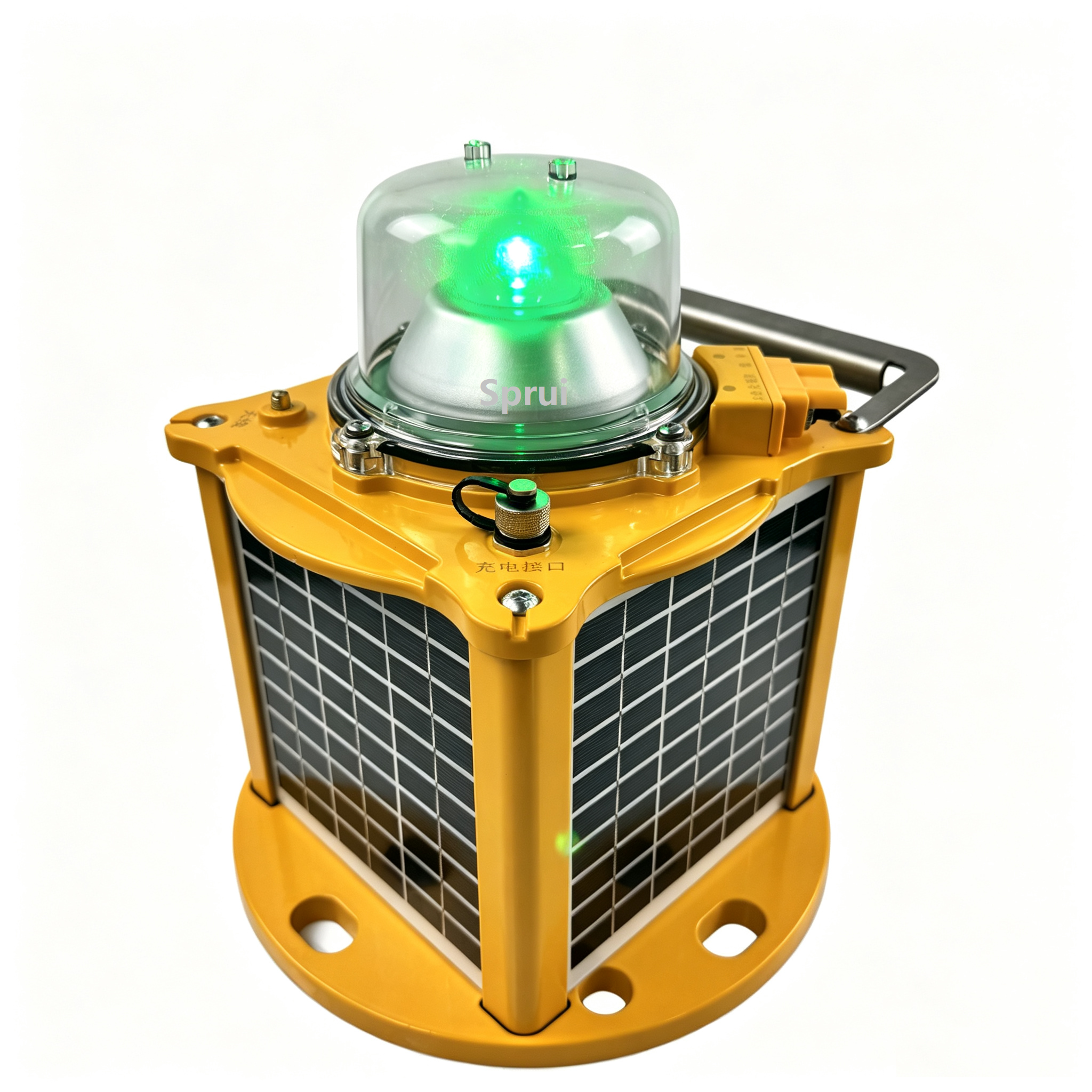

Solar Heliport Lighting — SPR-70

The SPR-70 is a next-generation, self-contained solar light specifically designed to survive the harshest environments with minimal ongoing maintenance. These completely self-contained LED lights are designed to suit a range of aviation and general applications including emergency airstrip, caution, taxiway, and threshold lighting. All product variants come with an external interface port for supplementary battery charging via DC input. The battery is protected from over-charging within the circuit to ensure maximum battery life. The SPR-70 comes with a maximum power point tracker (MPPT) to optimize solar input into the battery for longer run time.

Specifications

Light Characteristics
Light Source
LED
Available Colors
Green, White, Yellow, Blue, Red
Horizontal Output
360°
Intensity Adjustments
3 AUTO Modes and 3 TEMP Modes (Low, Medium, High)
LED Life Expectancy
>100,000 hours
Temperature Range
-40 to 60°C
Solar Module Type
Monocrystalline
Solar Characteristics
Solar Output
10W (4 × 2.5)
Solar Efficiency
21%
Charging Regulation
MPPT with Temperature Compensation
Battery Type
Pure-lead VRLA / Lithium battery
Battery Capacity
12Ah / 12V
Body Material
Powder-coated Aluminum with Integrated Handle
Lens Material
UV-stabilized Polycarbonate
Physical Characteristics
Height × Width
254mm × 234mm
Mass
8.8 kg
Ingress Protection
IP67
Service Life
Up to 12 Years
Compliance
ICAO Annex 14, Vol 2
